• Rear axle, 3.42 ratio
• Durabed, pickup bed
• Hill Descent Control
• Transfer case, two-speed electronic Autotrac with rotary dial control (4WD models only)
• Differential, heavy-duty locking rear
• Four wheel drive
• Air cleaner, high-capacity
• Alternator, 170 amps
• Skid Plates
• Frame, fully-boxed, hydroformed front section
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator
• Capless Fuel Fill

• Wheels, 18" x 8.5" (45.7 cm x 21.6 cm) High gloss Black painted aluminum
• Tires, LT275/65R18C MT blackwall Goodyear Wrangler DuraTrac
• Tire, spare 265/70R17SL all-season, blackwall
• Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front (High gloss black.)
• Bumper, rear (High gloss black.)
• CornerStep, rear bumper
• Recovery hooks, performance Red
• Cargo tie downs (12), fixed rated at 500 lbs per corner
• Grille (High gloss Black bars with mesh inserts.)
• Headlamps, halogen reflector with halogen Daytime Running Lamps

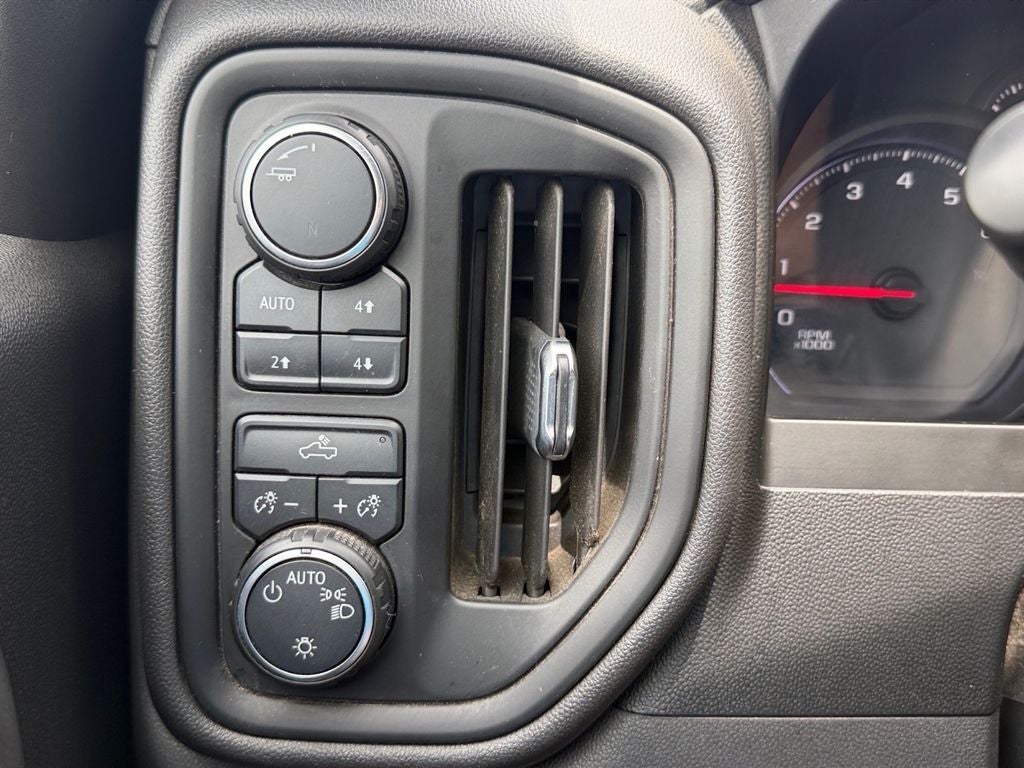

• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
• Taillamps, LED with signature
• Mirrors, outside heated power-adjustable
• Glass, deep-tinted
• Door handles, Black
• Tailgate and bed rail protection cap, top
• Tailgate, locking utilizes same key as ignition and door (Upgraded to (QT5) EZ Lift power lock and release tailgate when (PCX) Custom Convenience Package is ordered.)
• Tailgate, gate function manual, no EZ Lift

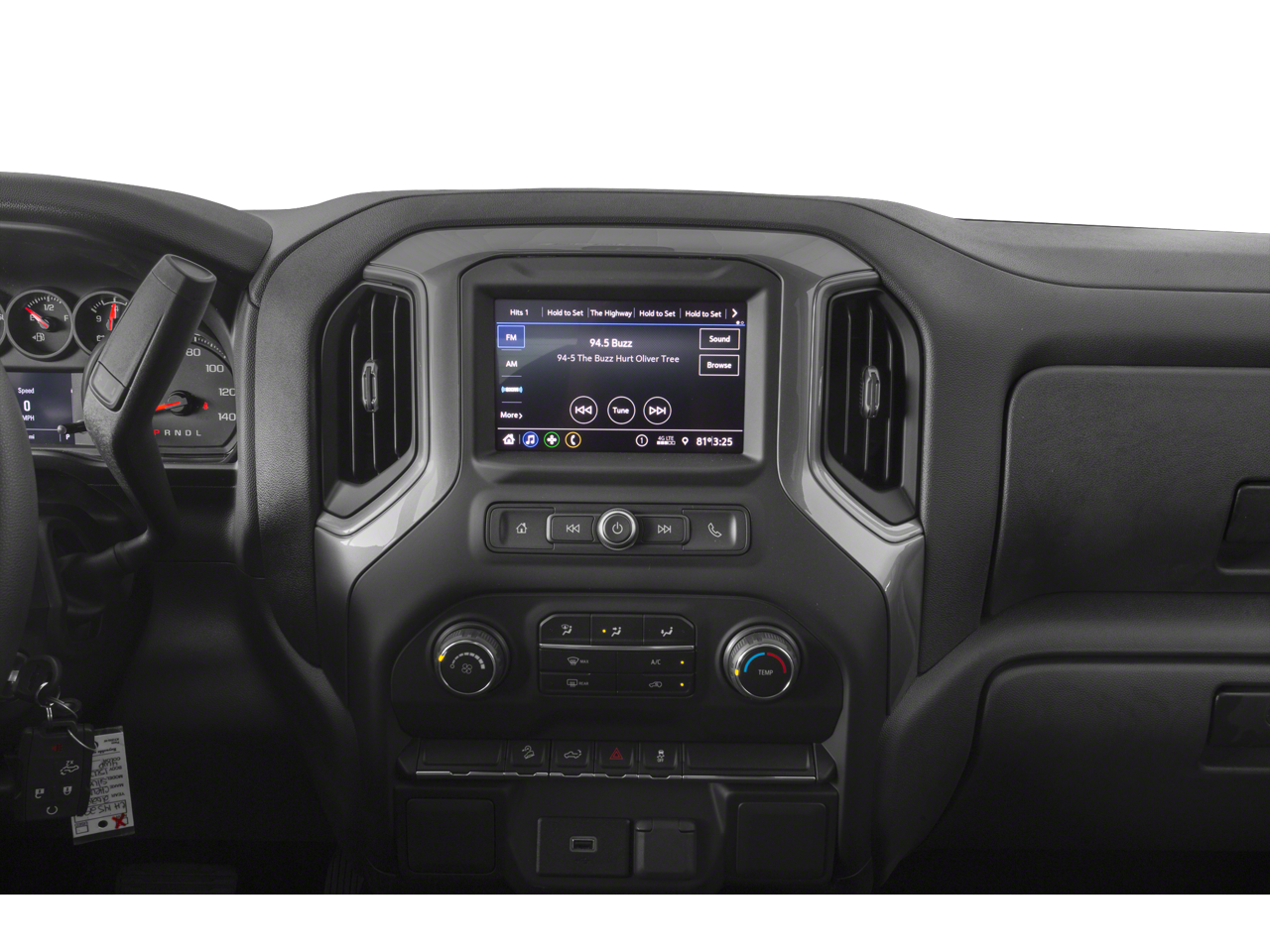

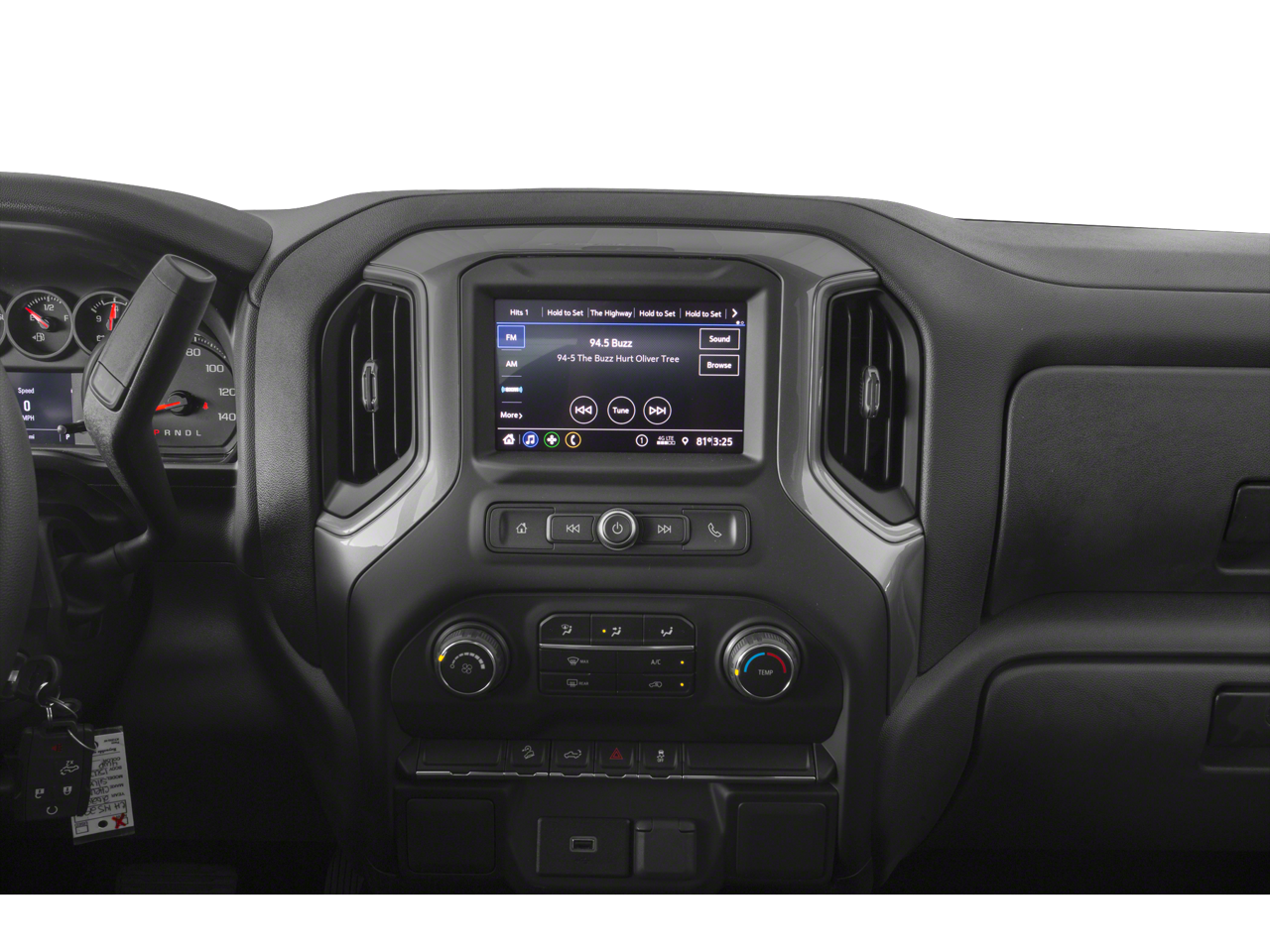

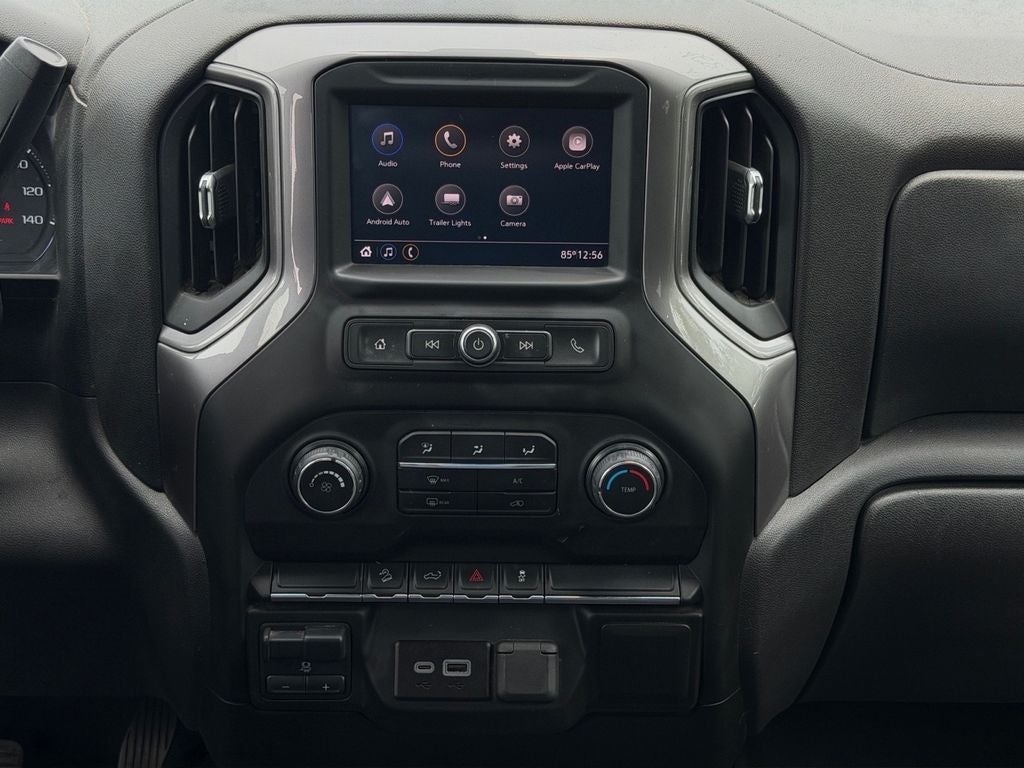

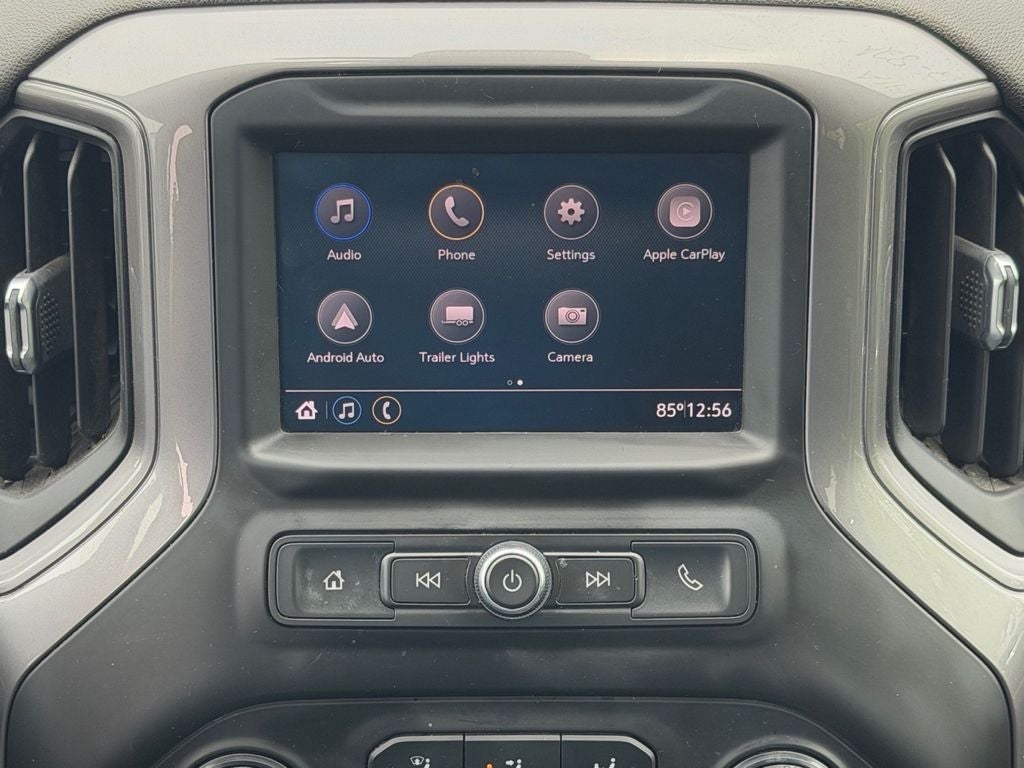

• Audio system, Chevrolet Infotainment 3 system 7" diagonal color touchscreen, AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices, voice command pass-through to phone, Apple CarPlay and Android Auto capable.
• Audio system feature, 6-speaker system
• Bluetooth® for phone, connectivity to vehicle infotainment system

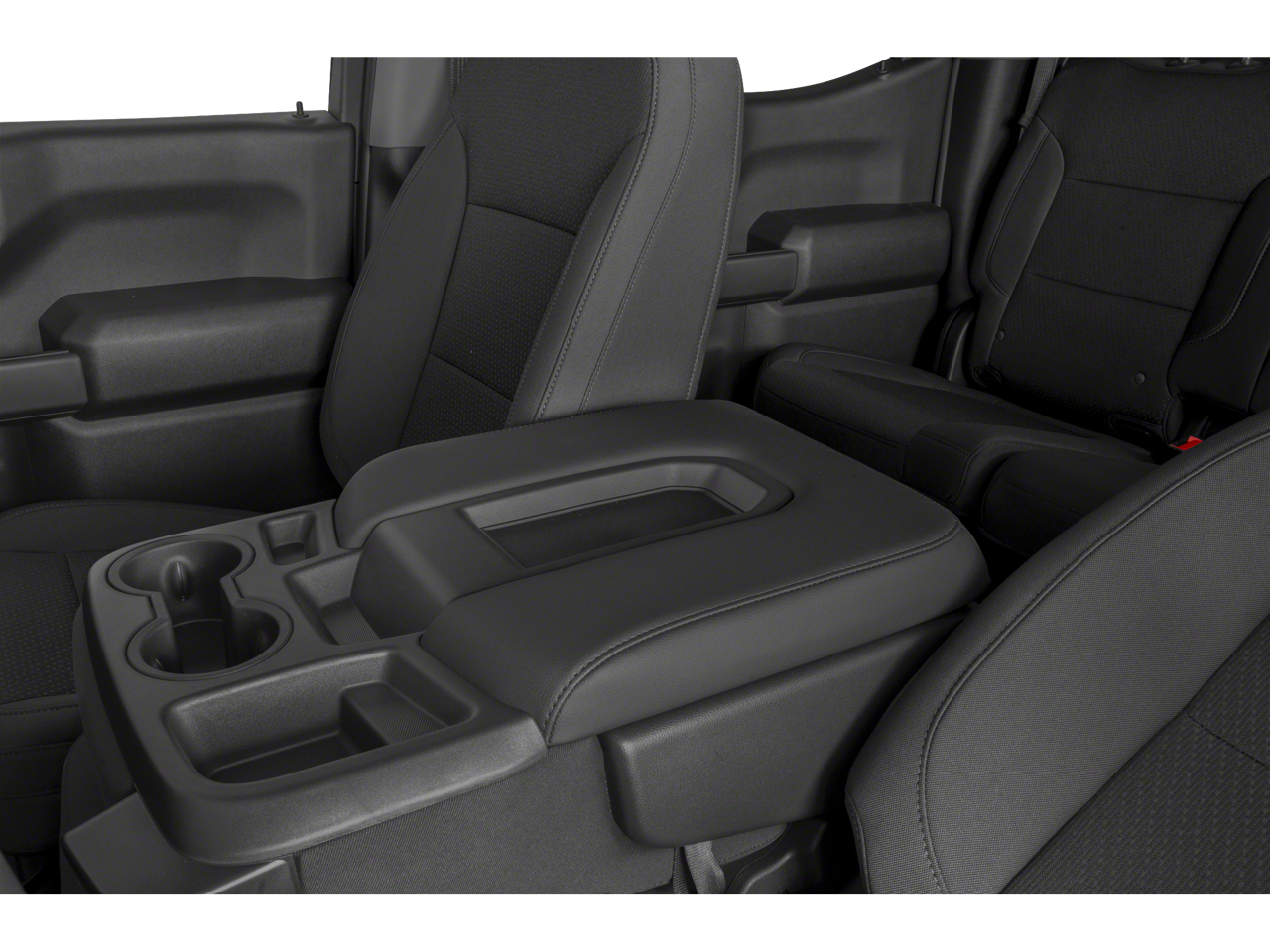

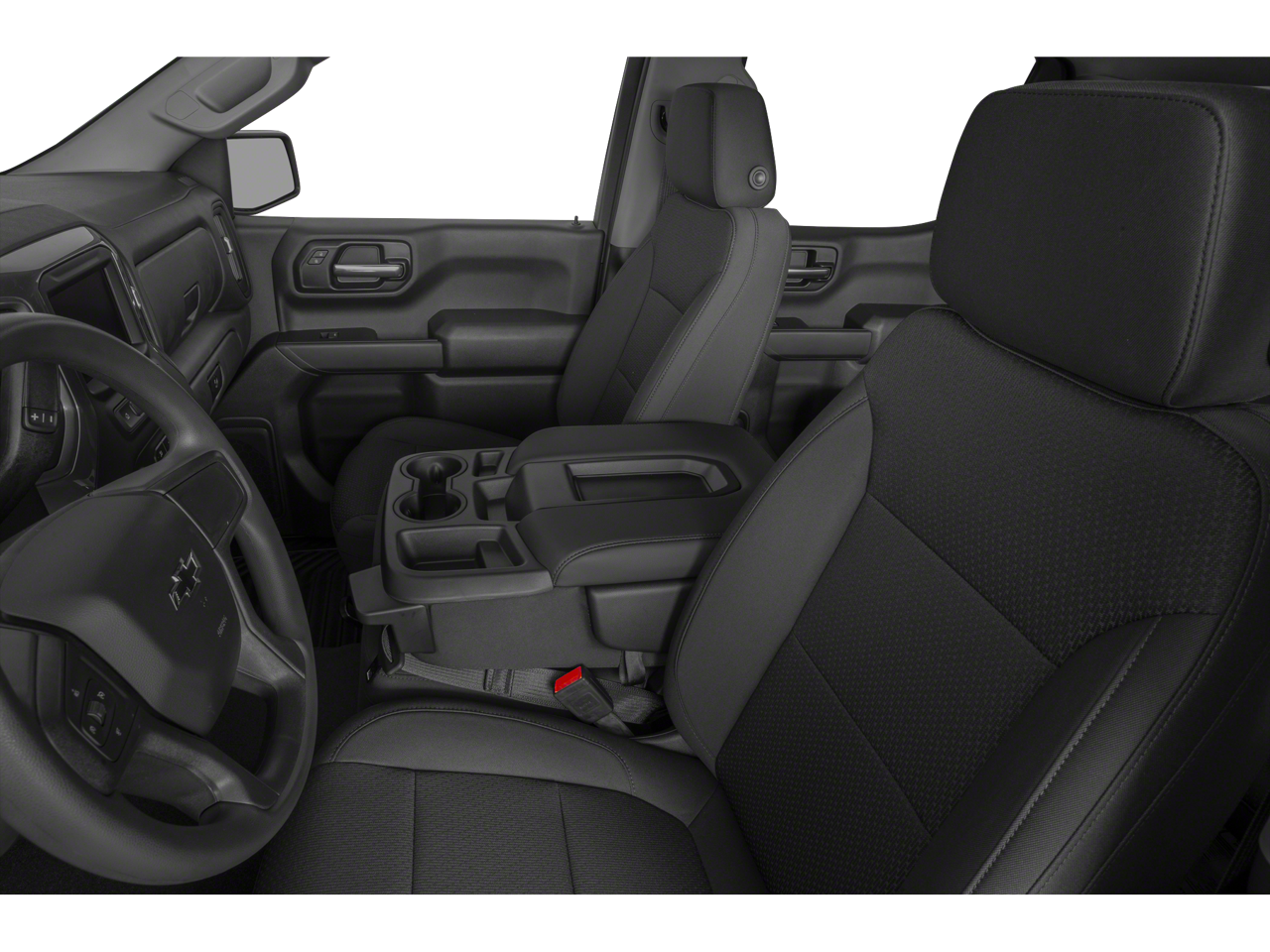

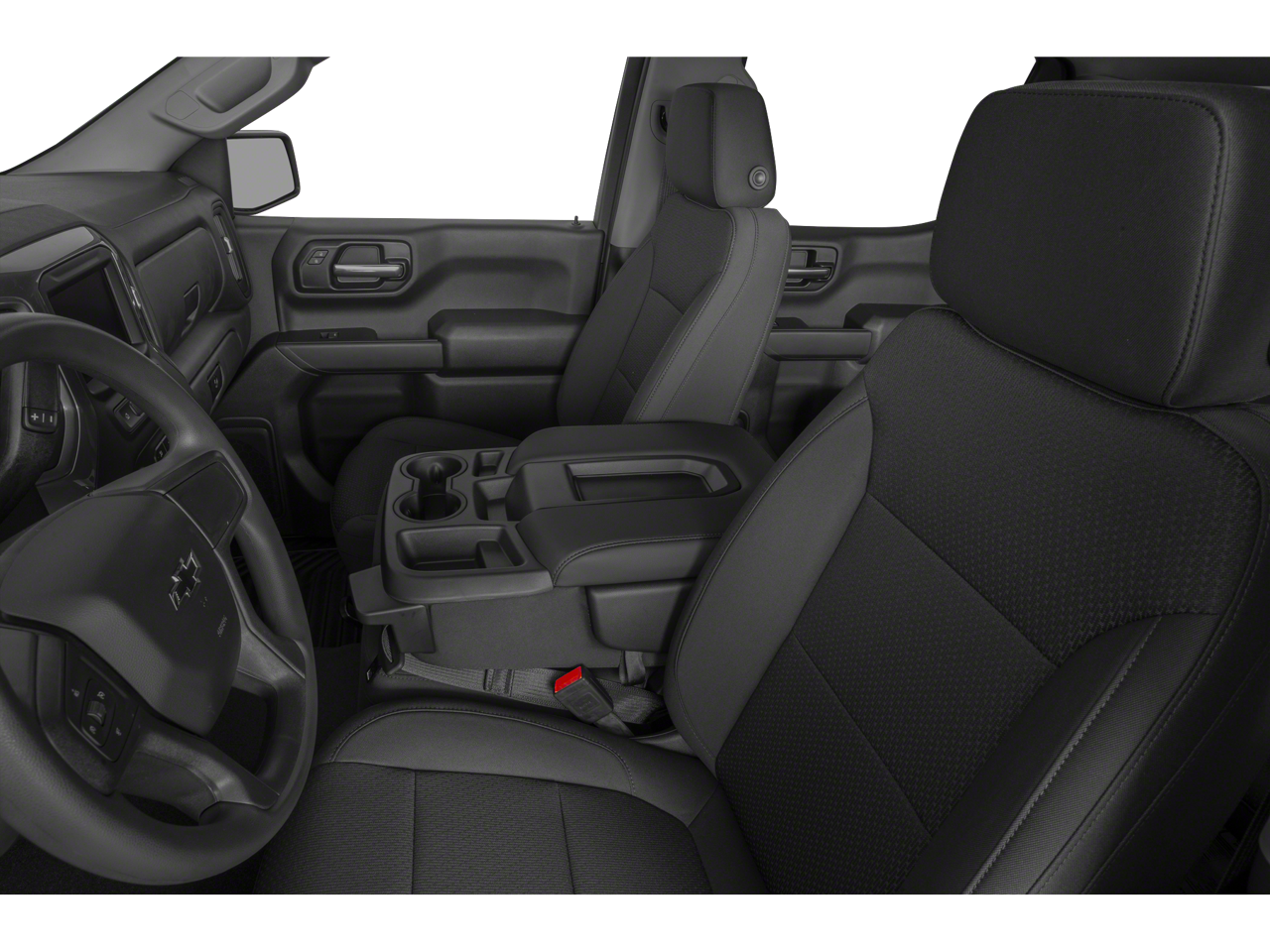

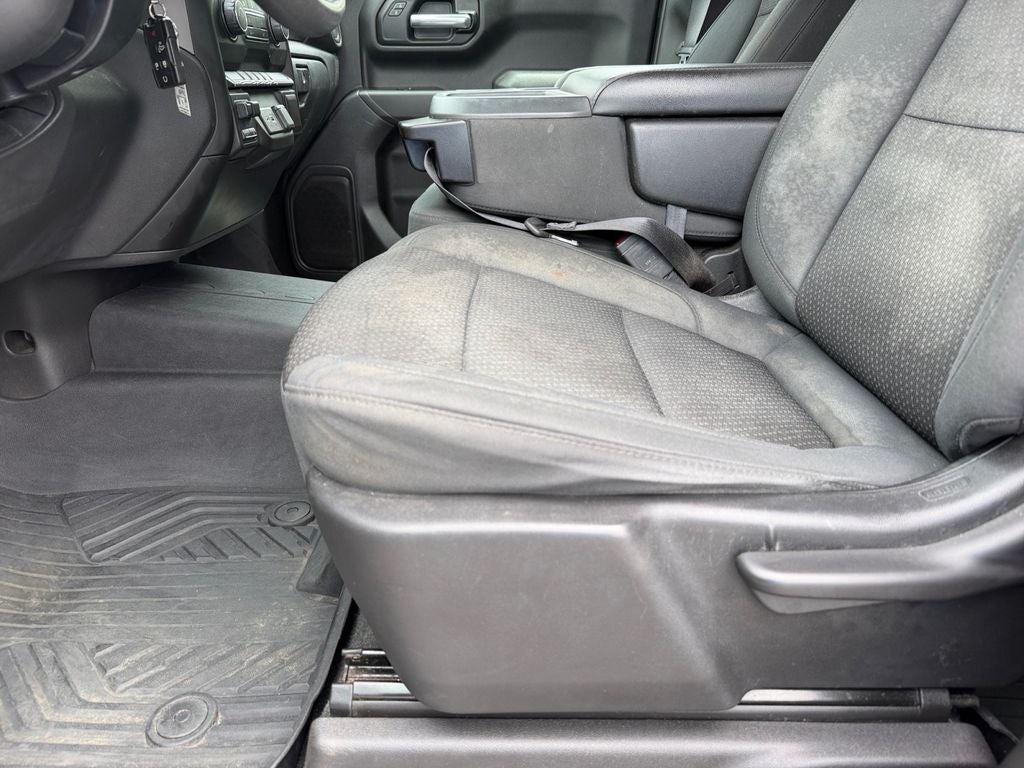

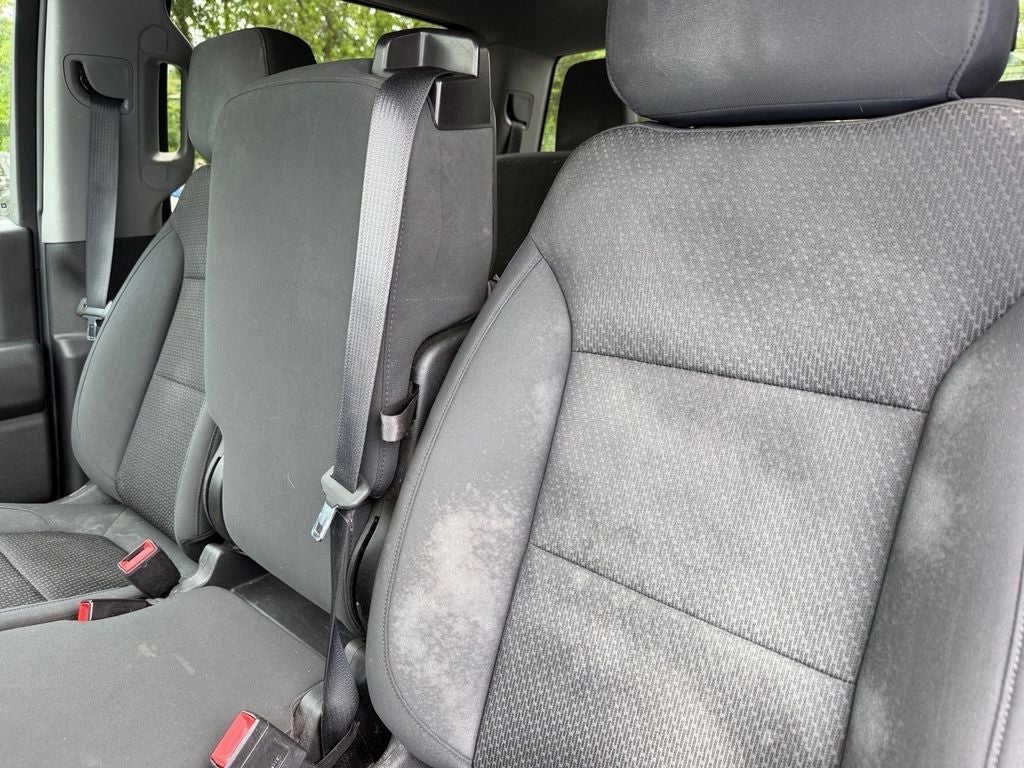

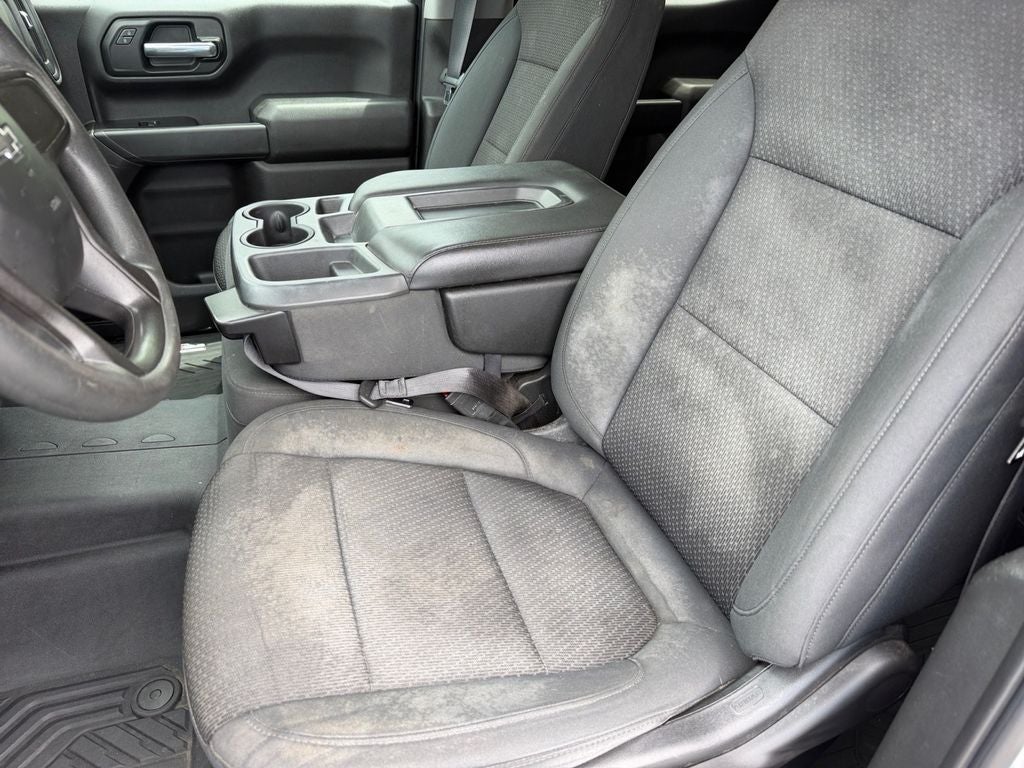

• Seats, front 40/20/40 split-bench
• Seat trim, Cloth
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

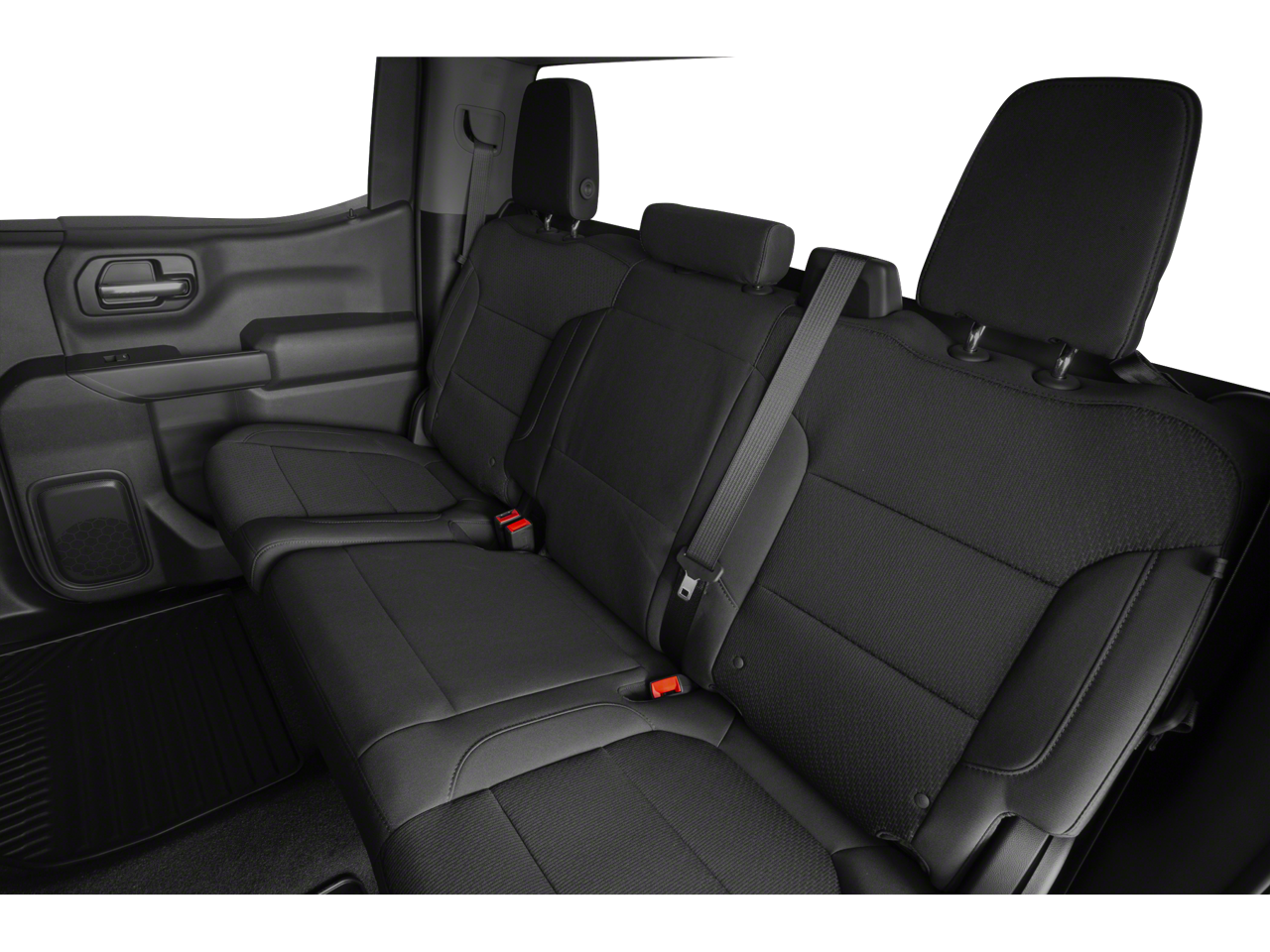

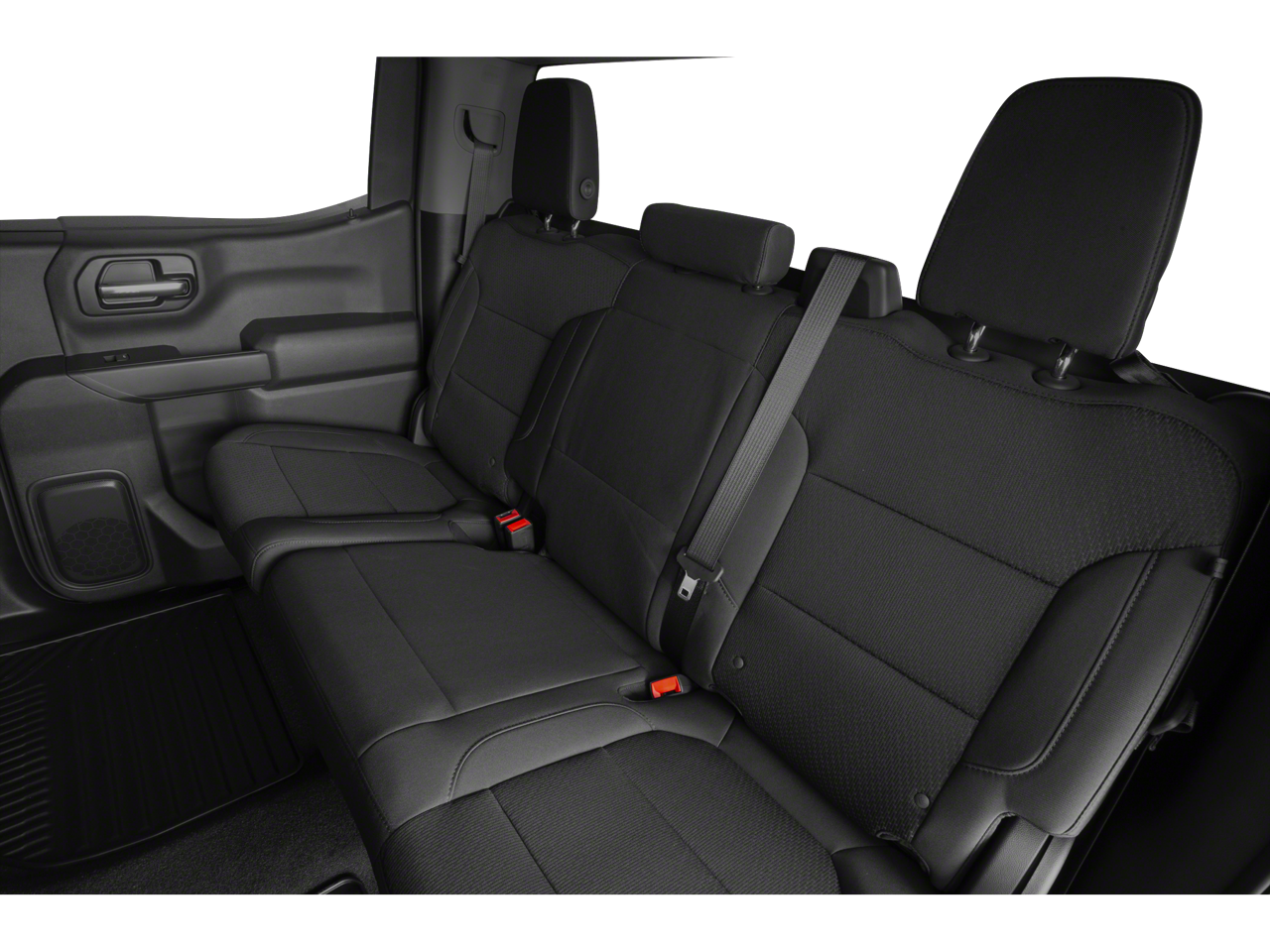

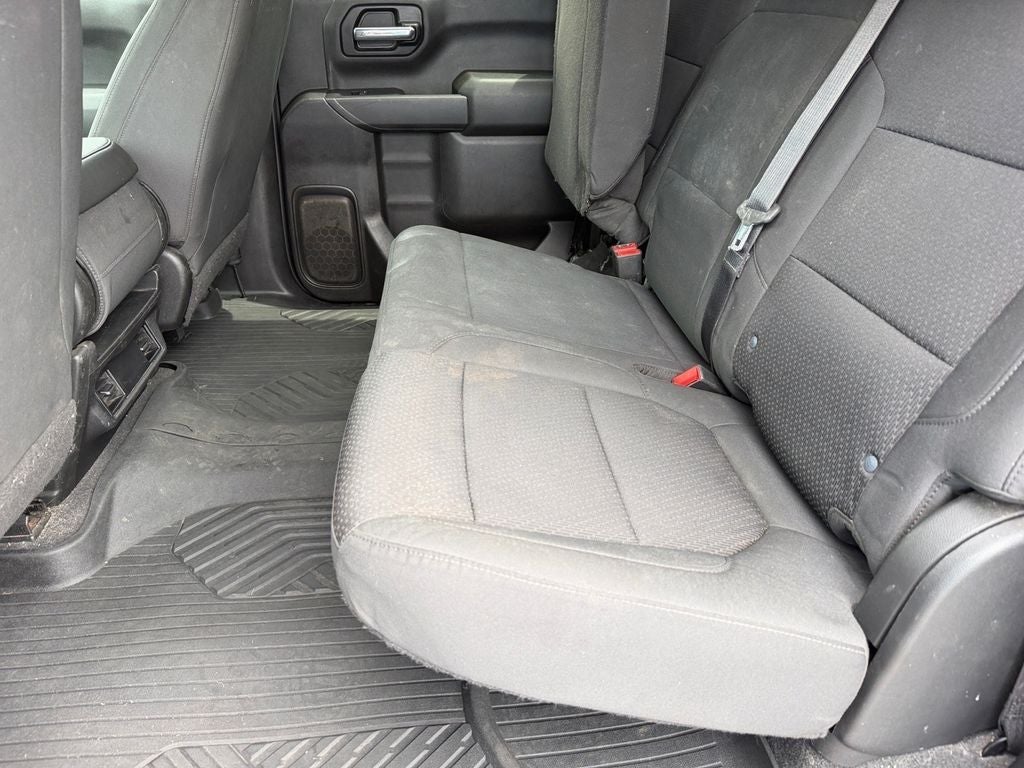

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Floor covering, color-keyed carpeting

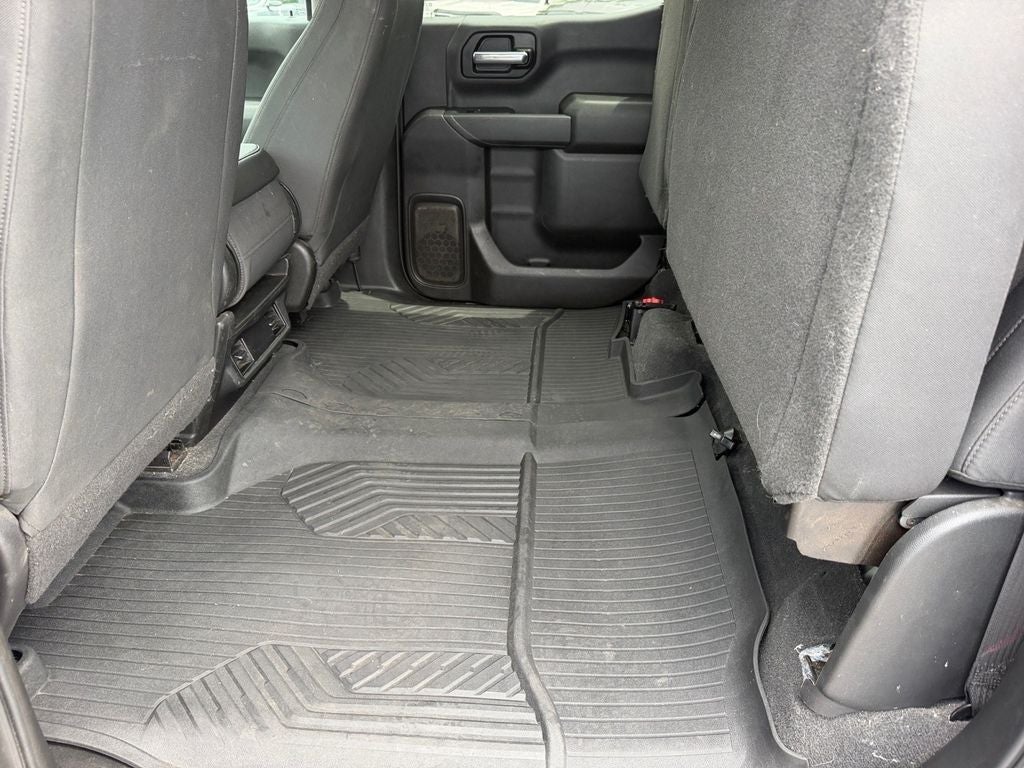

• Floor mats, rubberized vinyl, front
• Floor mats, rubberized vinyl rear

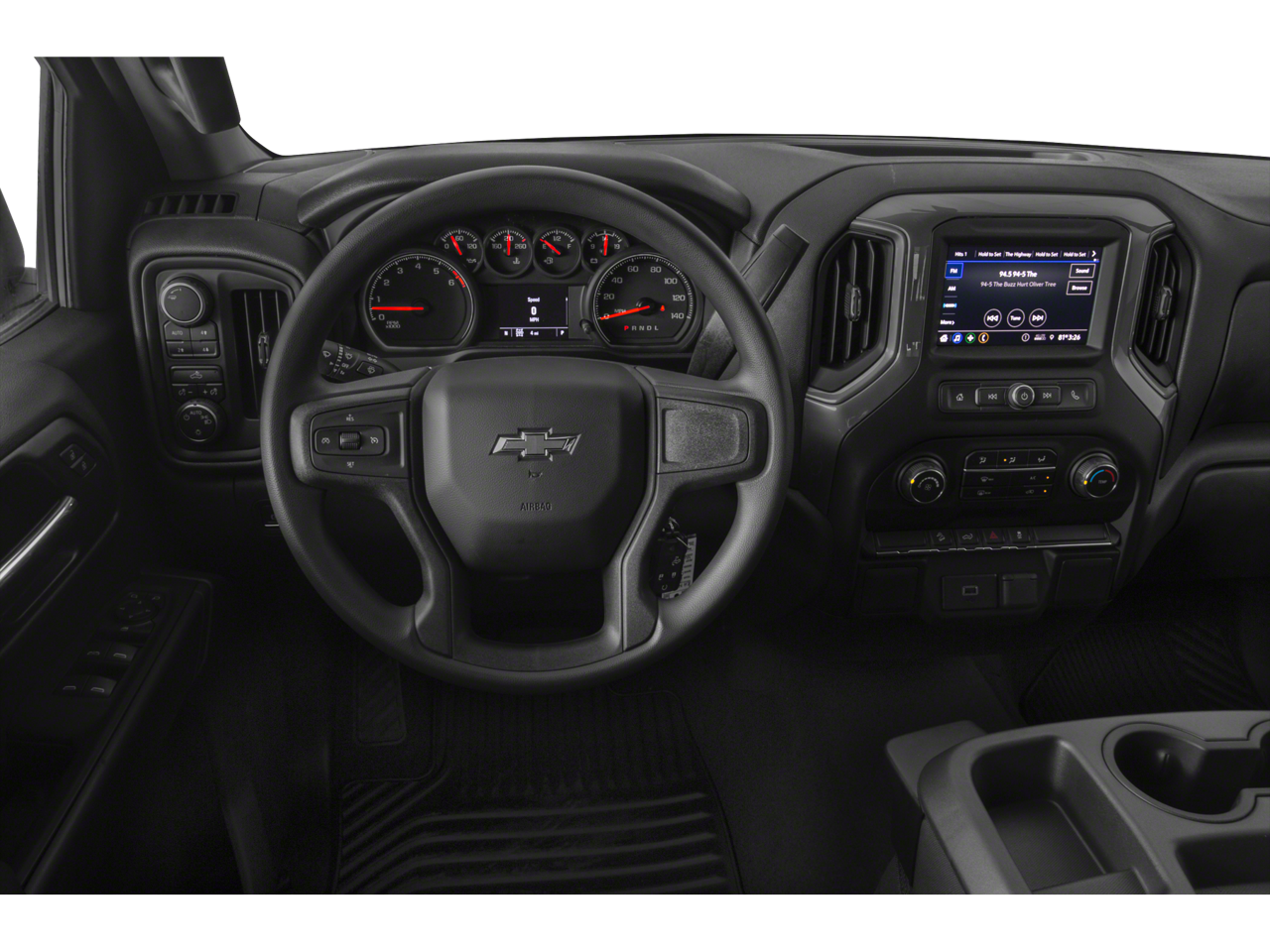

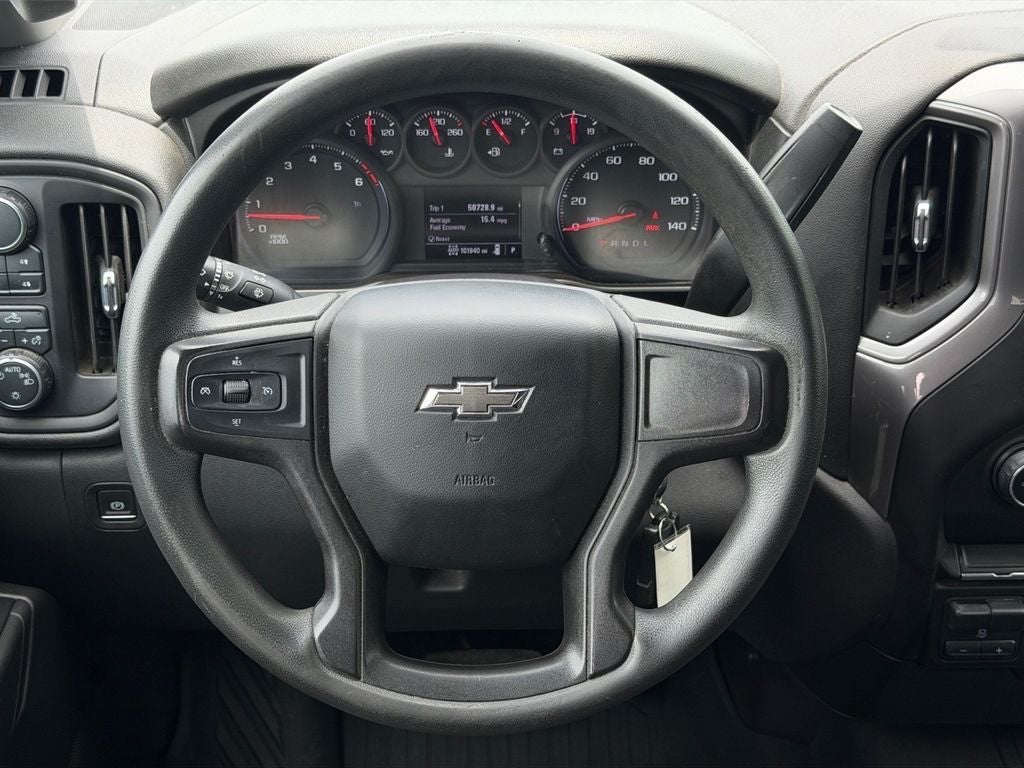

• Steering wheel, urethane
• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Rear Seat Reminder

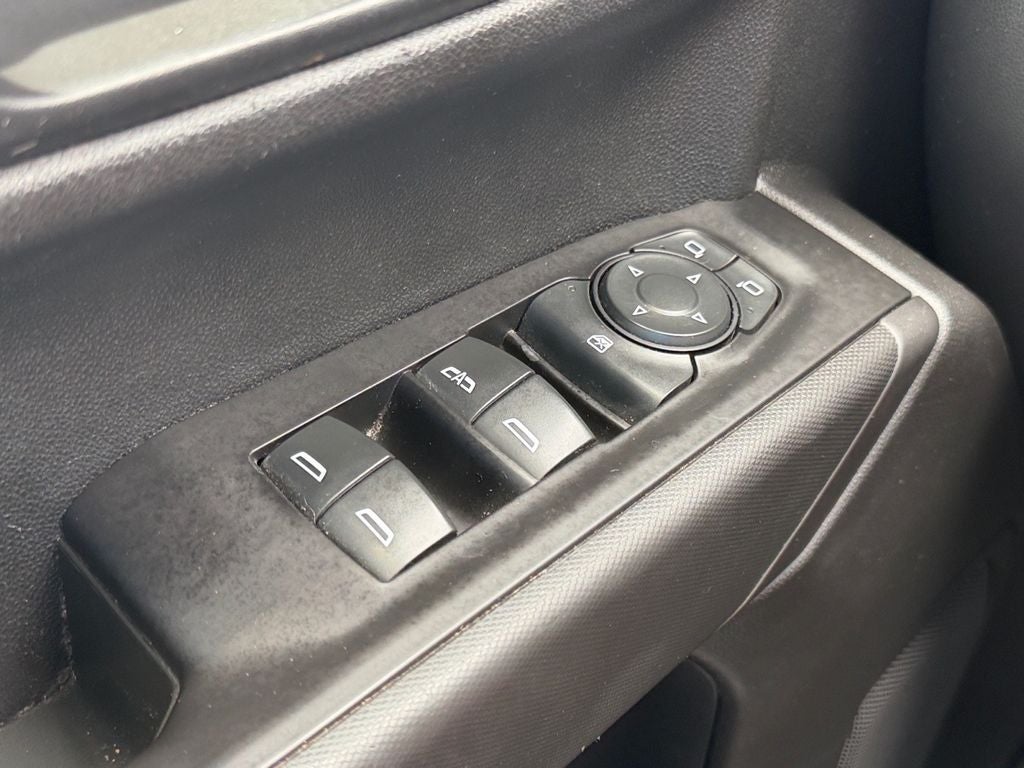

• Window, power front, drivers express up/down
• Window, power front, passenger express down
• Windows, power rear, express down
• Door locks, power
• Remote Keyless Entry, with 2 transmitters

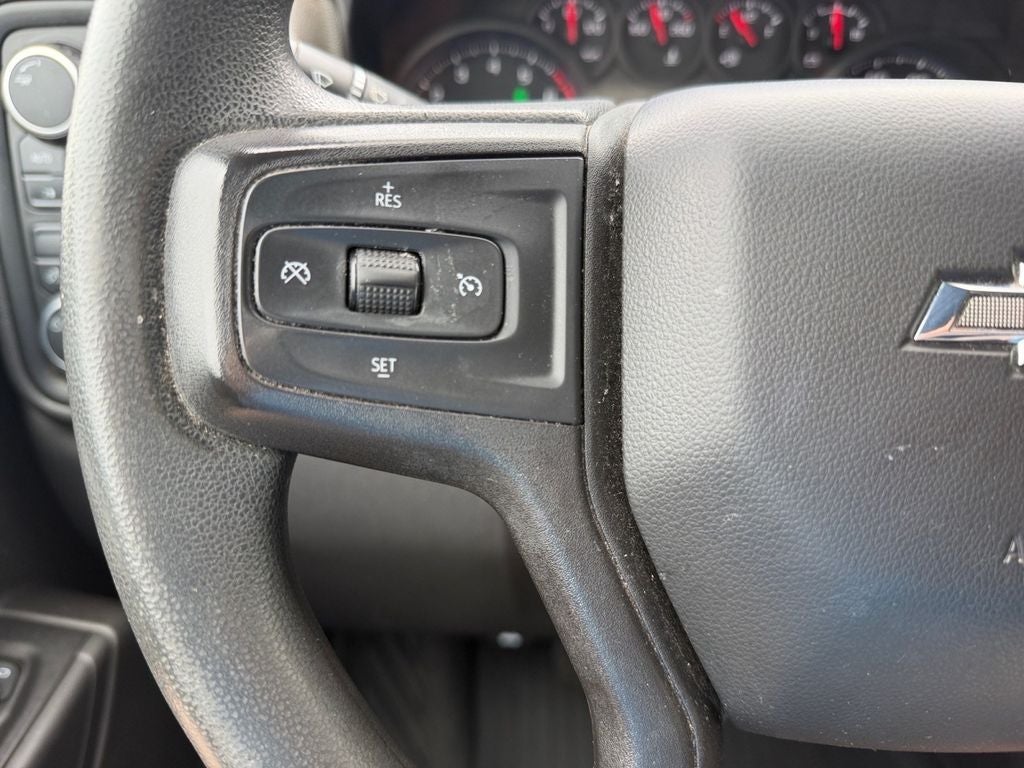

• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Power outlet, front auxiliary, 12-volt
• USB port, located on instrument panel

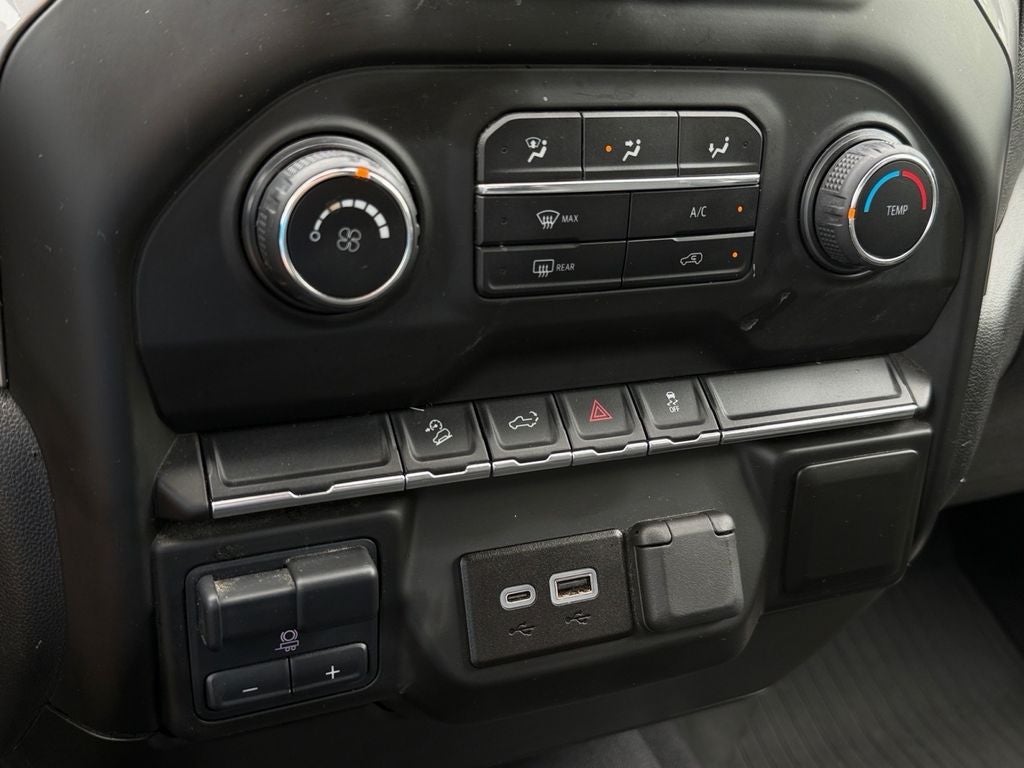

• Air conditioning, single-zone
• Air vents, rear, heating/cooling
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

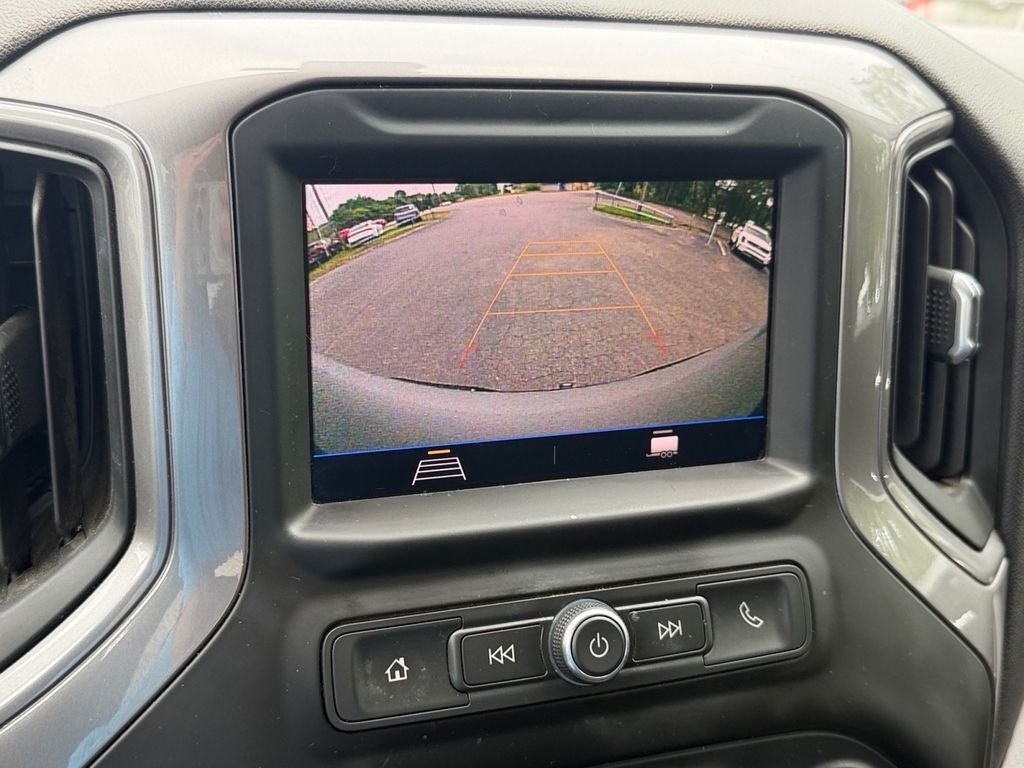

• Rear Vision Camera
• Hitch Guidance
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

CUSTOM CONVENIENCE PACKAGE

• includes (BTV) Remote Start with (UTJ) content theft alarm
• (C49) rear-window defogger
• (UF2) bed LED cargo area lighting and (QT5) EZ Lift power lock and release tailgate

CUSTOM TRAIL BOSS PREFERRED EQUIPMENT GROUP

• includes standard equipment

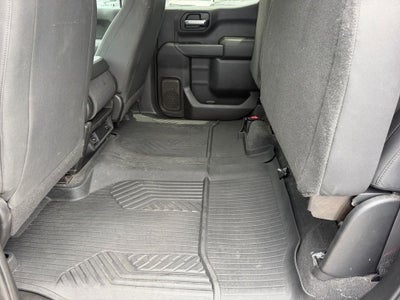

LPO, ALL-WEATHER FLOOR LINERS, 1ST AND 2ND ROWS

• (includes Z71 logo on front mats)

• Custom Convenience Package: LED Cargo Area Lighting; EZ Lift Power Lock and Release Tailgate; Remote Vehicle Starter System; Electric Rear-Window Defogger
• Preferred Equipment Group 2CX: Hitch Guidance; Rear 60/40 Folding Bench Seat (folds Up); Cloth Seat Trim; Bluetooth® For Phone; 170 Amps Alternator; LT275/65R18C MT BW Tires; 3.5" Diagonal Monochromatic Display; Trailering Package; Suspension Package; Front 40/20/40 Split-Bench Seat; Color-Keyed Carpeting Floor Covering; Power Front Windows with Passenger Express Down; Remote Keyless Entry; Front Rubberized Vinyl Floor Mats; Rear Rubberized-Vinyl Floor Mats; 2-Speed Transfer Case; Deep-Tinted Glass; Steering Wheel Mounted Electronic Cruise Control; Power Rear Windows with Express Down; Performance Red Recovery Hooks; Manual Tilt-Wheel Steering Column; High Gloss Black Grille; Power Front Windows with Driver Express Up/down; Locking Tailgate; 18" X 8.5" Black Painted Aluminum Wheels; Heavy-Duty Rear Locking Differential; Power Door Locks
• 4" Black Round Assist Steps
• Integrated Trailer Brake Controller
• All-Weather Floor Liner
• Wheel Locks (set of 4)
• Apple CarPlay/Android Auto smart device mirroring
• Rear mounted camera
• Brake assist system
• Cruise control with steering wheel mounted controls
• Keyfob remote start
• Primary monitor touchscreen
• Autotrac part and full-time 4WD

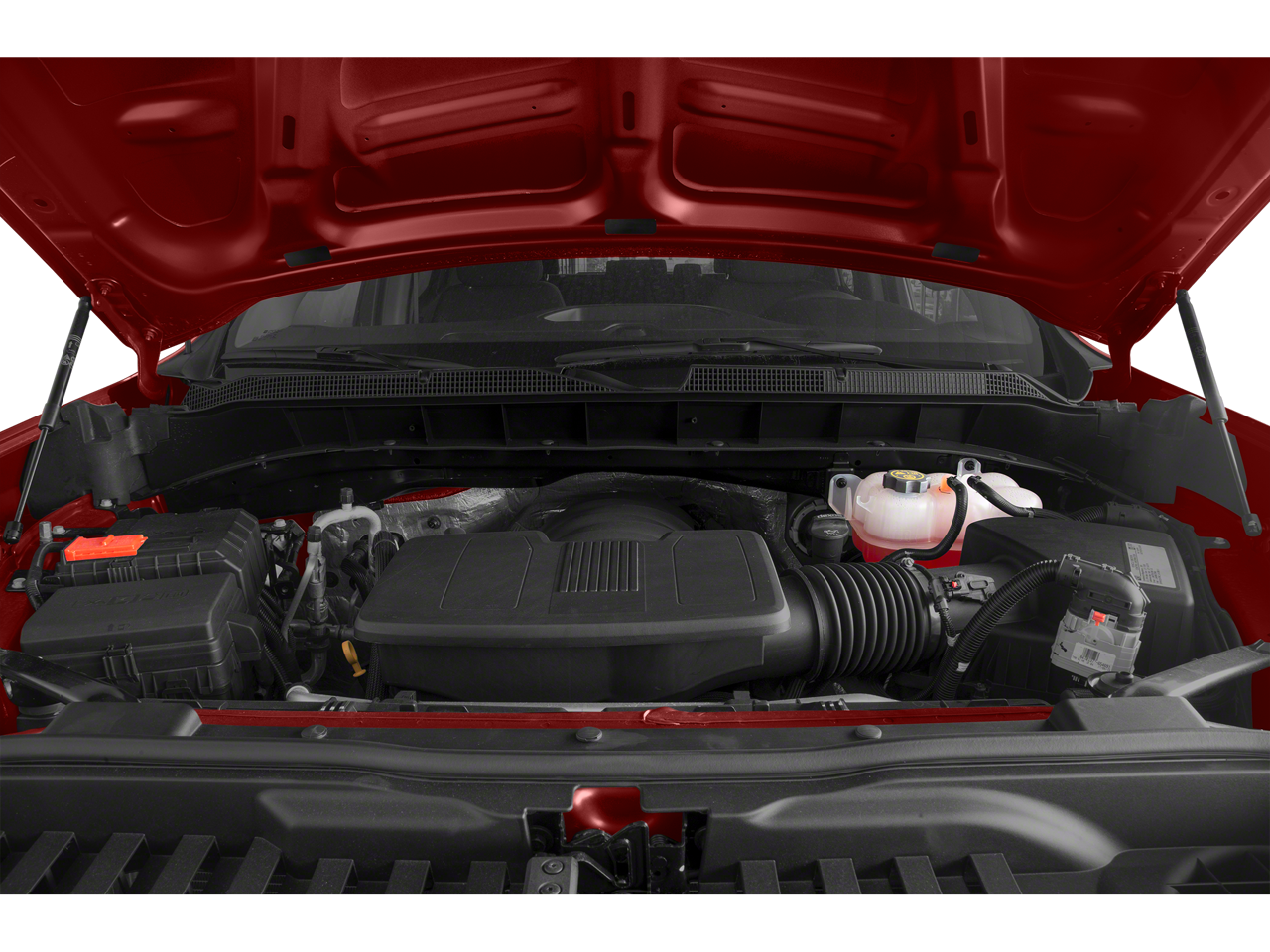

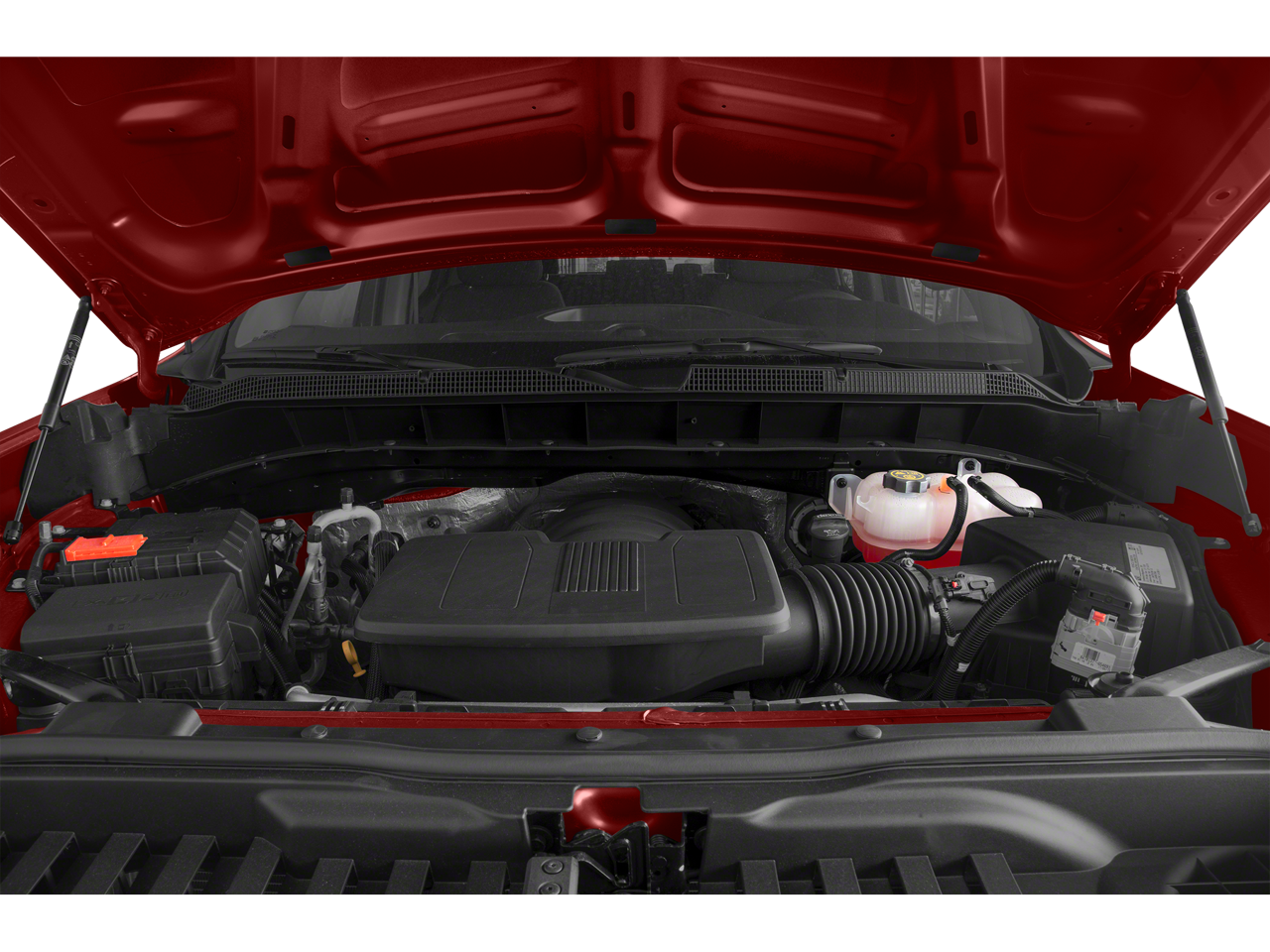

• EcoTec3 5.3L V-8 gasoline direct injection
• variable valve control
• regular unleaded
• engine with cylinder deactivation and 355HP
• EcoTec3 5.3L V-8
• Teen Driver restricted driving mode/alerts
• Mechanical
• Bluetooth® wireless audio streaming
• Hitch Guidance vehicle to trailer hitching assist
• Immobilizer
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer sway control
• Trailering Assist Guidelines vehicle and trailer reverse assist with visual graphic guidance only
• External memory control
• Pandora internet radio capability
• StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Hill descent control
• Hill start assist
• Rear seat check warning
• LED brake lights
• EZ Lift
• EZ Lower
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• Capless fuel filler
• Metallic paint
• Wheel security locks
• 18 x 8.5-inch front and rear black aluminum wheels
• LT275/65QR18 MT BSW front and rear tires
• Cloth front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first and second-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• Auto-locking doors
• 6-speed automatic
• Tow/Haul Mode selectable mode transmission
• Cloth rear seat upholstery
• Manual climate control
• Rear console climate control ducts
• Exterior temperature display

• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2839
• Curb Weight - Rear (lbs): 1976
• Gross Vehicle Weight Rating Cap (lbs): 6900
• Gross Combined Wt Rating (lbs): 12800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 740
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1825
• Maximum Trailering Capacity (lbs): 9500
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 50.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: R3O
• Rear Tire Order Code: R3O
• Spare Tire Order Code: XCQ
• Front Tire Size: LT275/65R18C
• Rear Tire Size: LT275/65R18C
• Spare Tire Size: 265/70R17SL
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.3
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Box Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 147.53
• Length, Overall (in): 231.7
• Width, Max w/o mirrors (in): 81.24
• Height, Overall (in): 78.35
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.88
• Ground Clearance, Rear (in): 10.88
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.92
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 62.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.16
• Second Hip Room (in): 60.24
• Summary

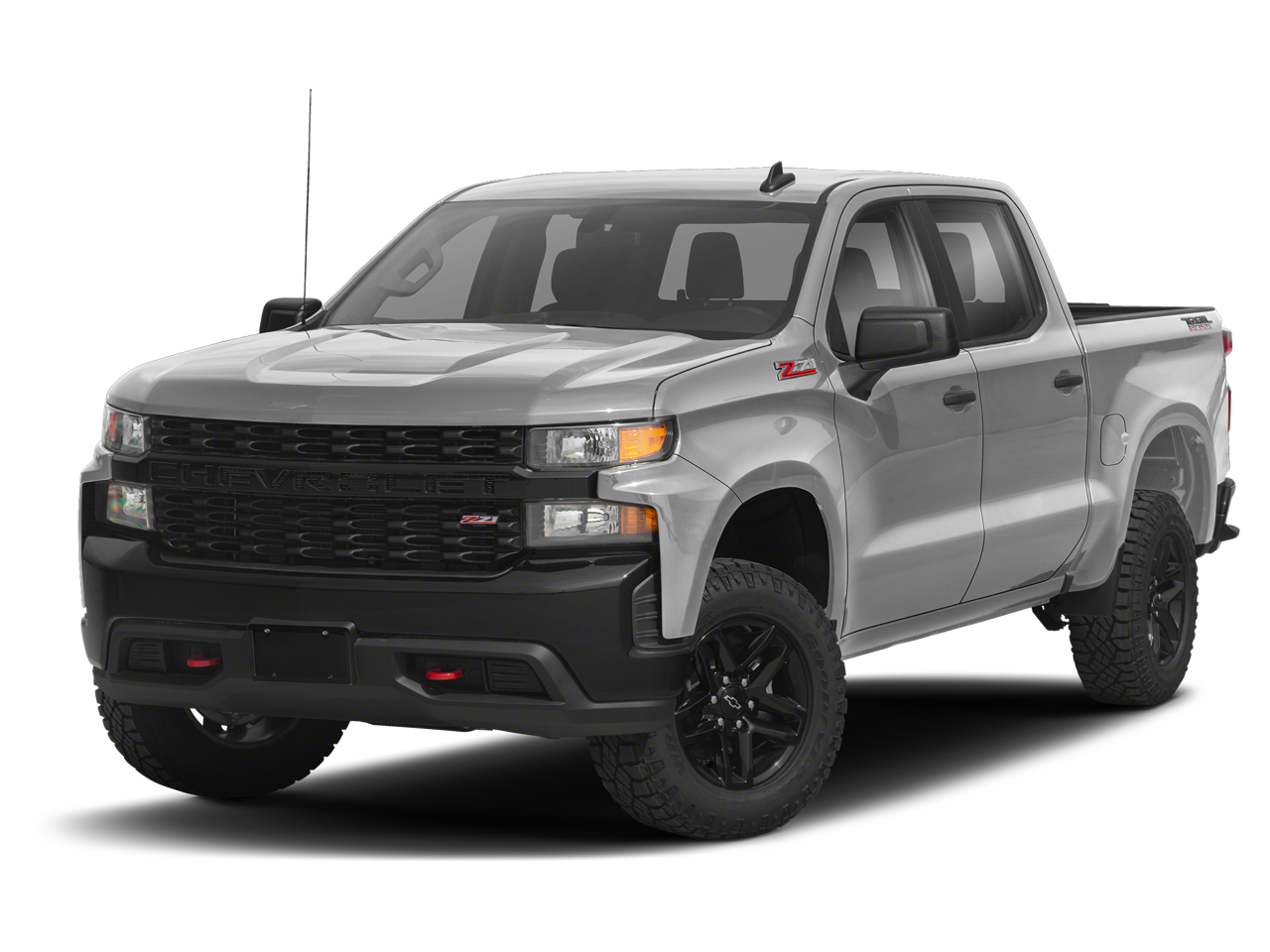

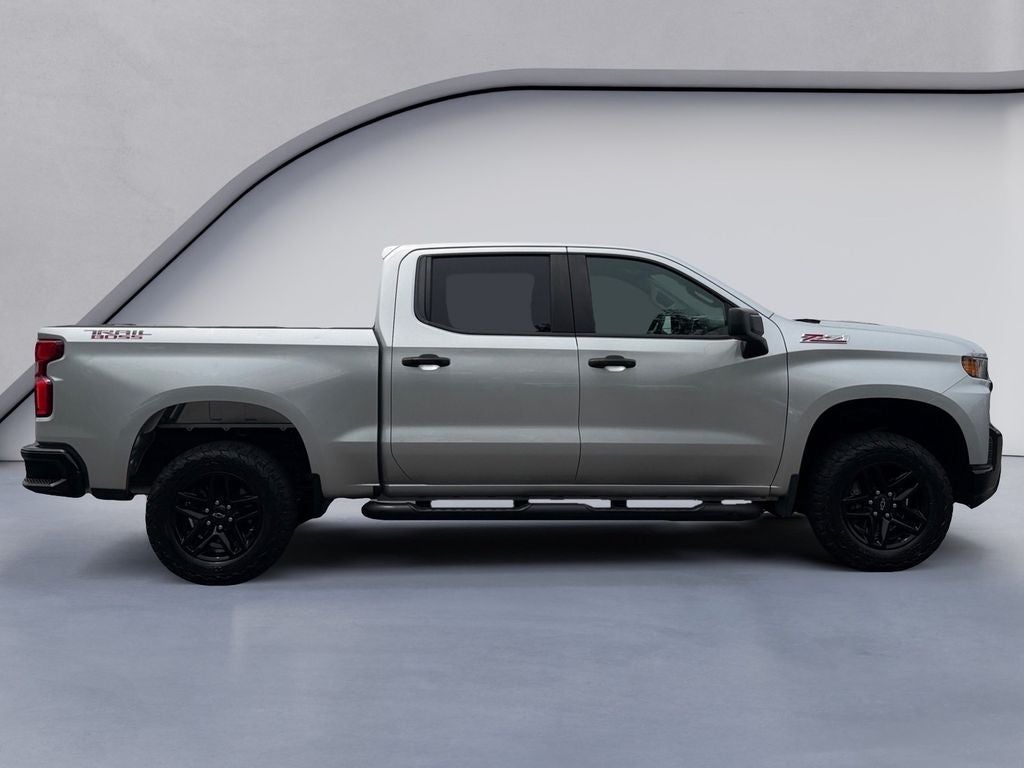

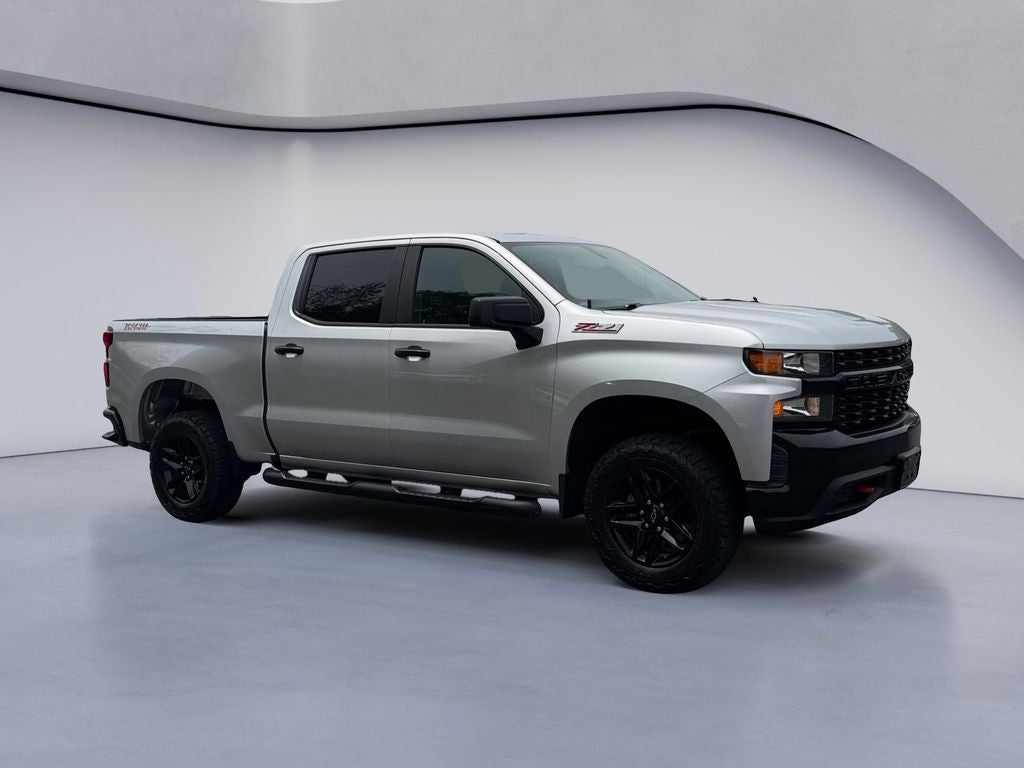

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.2
